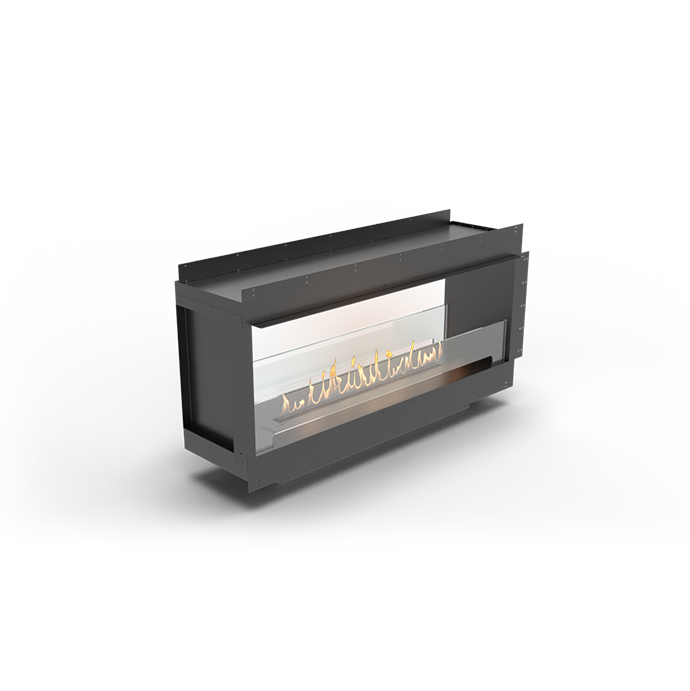

1190 BURNER Forma 1500 Tunnel Fireplace (glass screens included)

Details

Planika Forma 1500 Tunnel: Dual-Sided Radiance Immerse your space in the allure of the Planika Forma 1500 Tunnel, a wall-installed bioethanol fireplace showcasing flames visible from two opposite sides. Ideal for rooms with a minimum size of 94 m³. Bioethanol Fireplace Options:

FLA3: Up to 11 hours of burn time per refill.
FLA3+: Up to 35 hours of burning time per refill.

Key Features:

Tunnel Design: Flames are visible from two opposite sides, creating a stunning focal point in your space.
Smart Burner Choices: Choose between two automatic fire chambers for personalised burn times.
Intelligent Controls: Both burners include a remote control, offering WiFi and Smart Home System compatibility for effortless operation.
BEV Technology: Cleaner combustion with Planika’s BEV technology, vaporizing bioethanol for an enhanced burning experience.
Safety Assurance: Equipped with tilt, temperature, overfill, and CO2 sensors, ensuring the highest safety standards.

Materials:

Crafted from powder-coated black galvanized steel and tempered glass, providing a sleek and timeless design.

Included in Delivery:

Automatic bioethanol burner (FLA3 or FLA3+)
Forma 1500 Tunnel frame
Tempered safety glass
Glass brackets
Remote control

Installation Tips:

If installing in a combustible wall, insulate using recommended thermal insulation boards.
Ensure the wall above the fireplace is self-supporting.
Use fireproof material around the fireplace.
Connect the fireplace to electricity for optimal performance.
Install on a flat and stable surface.

Elevate your living space effortlessly with the Planika Forma 1500 Tunnel—an embodiment of modern design, advanced technology, and safety features. Immerse yourself in the warmth and beauty of this sleek and versatile dual-sided fireplace.

£11,120.00

Have a question? Ask before you buy

Delivery within 14 days

Dependent on stock. Most products are built and shipped directly from the factory.

The Planika Forma 1500 Tunnel Fireplace is a complete bioethanol firebox insert with a see-through tunnel flame view, visible from both sides. It combines a non-combustible steel housing with the FLA4 1190 BEV burner, ready to drop into a media wall, chimney breast or feature wall. No flue, no chimney, no construction work, just a 230 V plug.

Key features

Tunnel configuration: See-through tunnel flame view, visible from both sides.
FLA4 1190 burner: Up to 9 hours per fill with 6-stage flame regulation.
BEV Technology: Vaporised ethanol burns clean with no soot, ash or odour.
Zero-clearance housing: Approved for installation in flammable materials such as plasterboard or timber framing.
Plug & Play: 230 V supply only, no flue or chimney required.
Glass screens included: Tempered glass forms a sealed flame view from every visible side.

BEV (Bio Ethanol Ventless) is Planika’s patented automatic burner technology. Bioethanol is heated inside a sealed chamber and turned into flammable vapours, so it is the vapour that burns, never the liquid fuel itself. A microprocessor regulates combustion and a suite of safety sensors (temperature, fuel level, seismic, spillage) monitor the burn at all times.

Combustion is clean with no smoke, soot or ash, so the firebox can be installed in custom housings without any flue, chimney or vent.

Burner (FLA4 1190)

Fuel type	Bioethanol 95–96.6%
Fuel tank capacity	3.1-14.8 L
Burning time	Up to 9 hours
Flame regulation	6 stages
Power supply	230 V
Burner dimensions (L × D × H)	1190 × 220 × 280 mm

Forma 1500 housing

Configuration	Tunnel
Forma length	1500 mm
Materials	Non-combustible galvanised steel housing, toughened glass
Finish	Black powder coating (custom RAL on request)
Glass screens	Included
Application	Indoor use only
Flue / chimney	Not required

Forma 1500 Tunnel firebox housing
FLA4 1190 burner unit with BEV Technology
Tempered glass screen(s)
Automatic refuelling pump
Remote control
Power cable
Mounting hardware
Installation manual and user manual

Finish:

Black powder coating as standard
Custom RAL colours available on request

Burner:

FLA4 1190 (paired with this Forma 1500 housing)

Power supply:

UK (BS 1363) plug as standard
EU (Schuko) plug available on request

What does the Forma 1500 Tunnel Fireplace include?

The kit includes the Forma 1500 Tunnel non-combustible housing and the FLA4 1190 BEV burner with refuelling pump, remote control and power cable. Tempered glass screens are included.

Do I need a flue or chimney?

No. The Forma 1500 Tunnel Fireplace uses BEV ventless technology and only needs a 230 V plug socket. There is no smoke, soot or ash, so no flue, chimney or vent is required.

What size opening do I need?

The Forma 1500 housing measures 1500 mm in length. Plan the wall recess or media unit to accommodate the housing depth and clearance for service access. Detailed installation drawings are supplied in the manual.

How long does one fill of fuel last?

The FLA4 1190 delivers up to 9 hours of burn time on the lower flame setting, with proportionally less on higher settings. Refilling is automatic via the integrated pump.

Can I install in a media wall or chimney breast?

Yes. The housing is non-combustible and rated for zero-clearance installation in flammable materials such as plasterboard, timber framing or MDF media units. Standard plug-and-play 230 V supply is sufficient.

What fuel does the burner use?

Use high-grade bioethanol fuel (95–96.6% concentration). We recommend Calida Premium Bioethanol Fuel for the cleanest, most efficient burn and to keep your warranty valid.

Is professional installation required?

The Forma firebox is designed for installation by a competent installer or experienced trade. Bentley Bioethanol Fires UK can supply only or arrange supply with an assisted installation service.
